Flat cables

Maximum flexibility with the minimum space requirement!
If it has to be flexible and space saving, our flat cables come to the fore. Demanding applications need flat cables, which have a low bend radius and a highly efficient cable construction.

Our flat cables are suitable for power and control lines and are used for average mechanical loads and strong operational bends in only a narrow plane. They are particularly used for hoists, transport equipment, tool machines and trailing cable systems. We use PVC and neoprene materials. Shielded cables fitted with carrier elements, as well as combination versions are part of our warehouse programme. 

If there is no cable available to suit your application, we will be happy to develop and deliver an optimised solution recommendation for you application.

SemoFlat® H05VVH6-F / H07VVH6-F

SemoFlat H05VVH6-F / H07VVH6-F- Flat cables are suitable for use in dry and damp areas. Used for installations of transportation systems, machine tools, elevators and hoisting gears. Freely suspended heights should not exceed 35 meters and travelling speeds of 1.6 m/s (according to VDE) should not be exceeded.

SemoFlat® shielded

SemoFlat shielded - Screened PVC flat cables are suited for use as energy and control cables, in particular for hoisting gears, transportation systems, machine tools for medium mechanical stresses and operationally strong bends in a single plane. Used in dry and damp areas.

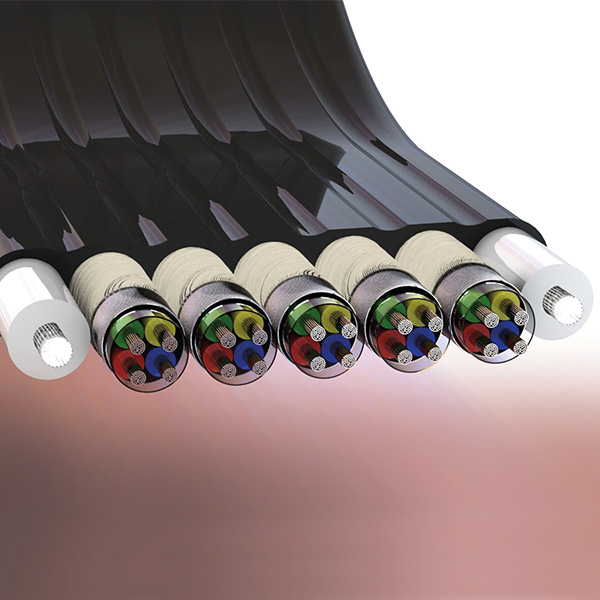

HKYFLCY-Bd, HKYFLTCY-Bd, HKYFLTFY-Bd ec

HKYFLCY-Bd, HKYFLTCY-Bd und HKYFLTFY-Bd ec - PVC flat cables can be used as energy and control cables, in particular on hoisting gears, transportation systems, machine tools for all medium mechanical stresses and operational strong bends in a single plane. They are suitable for use in dry and damp areas.

HFLN

HFLN - The neoprene flat cable can be used as energy and control cable. Mostly used for hoisting gears, transportation systems, machine tools and even at medium mechanical stresses and operationally strong bends in a single plane. The cable is also suited for use in dry, damp and wet areas and for outdoor applications.

HFLCN

HFLCN - The shielded flat cable can be used as energy and control cable. Mostly used for hoisting gears, transportation systems, machine tools and even at medium mechanical stresses and operationally strong bends in a single plane. The cable is suitable for use in dry, damp and wet areas and for outdoor applications.

SemoFlat® LSOH

SemoFlat LSOH - Suitable for dry, humid and wet rooms and for outdoor use. Power and control cable for trolley systems, transfer lines, machine-tools, on hoisting devices, lift, crane and container bridges. Also in applications where cables are bended strongly in permanent moving operation in one level.
